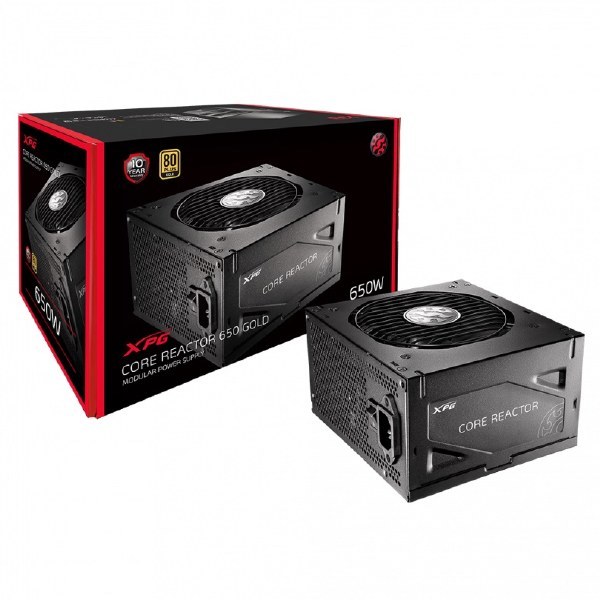

XPG CORE REACTOR 650W PSU 80PLUS GOLD MODULAR 10Yr Warranty

The XPG CORE REACTOR is a modular, 80 Plus Gold power supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.
Features
• 80 Plus Gold Certified
• Compact with Modular Design
• Intelligent, Low-Noise Fan-Curve
• Premium 100% Japanese Capacitors
• Industrial-Grade Protection
• 10-Year Warranty
Specifications
Dimension (W x L x H)
150 x 140 x 86mm
80 PLUS Rating GOLD
ATX Version Intel 1.42
Protections OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification CB / TUV / cTUVus / CCC / CE / FCC(IC) / BSMI / RCM / KC / NOM
PFC 0.99
Input Voltage 100V-240V
Input Current 10A-5A
Input Frequency 47Hz-63Hz
Operating Temperature 50?
Fan Size 12cm
Fan Bearing FDB
Fan Speed 2400
Noise Level @ 20% 11.2dB(A)
Noise Level @ 50% 750W : 11.2dB(A)
Noise Level @ 100% 750W : 22.3dB(A)
MTBF 100K hours at full load
ATX 24 Pin Connector 1
EPS 8 (4+4) Pin Connector 650W : 2
SATA Connector 12
Peripheral 4 Pin Connector 4
PCI-E 6+2 Pin Connector 650W : 4
Warranty 10 Year
