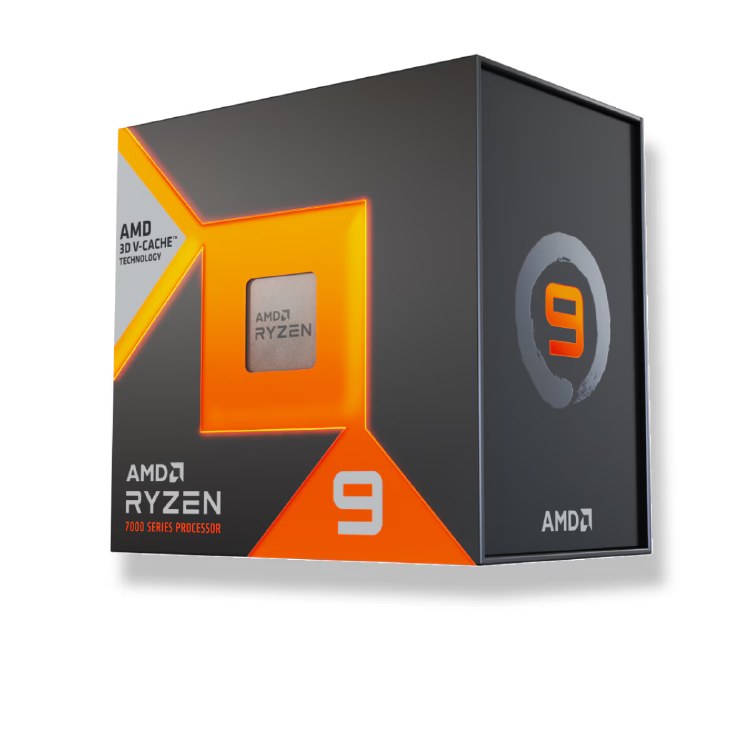

AMD Ryzen 9 7950X3D: AM5 CPU, 16-Core/32 Threads, Max Freq 5.7GHz, 144MB Cache, 120W, No Cooler Included

AMD Ryzen 9 7950X3D: AM5 CPU, 16-Core/32 Threads, Max Freq 5.7GHz, 144MB Cache, 120W, No Cooler Included

General Specifications
Name: AMD Ryzen™ 9 7950X3D
Family: Ryzen
Series: Ryzen 7000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Consumer Use: Yes
Regional Availability: Global
Former Codename: Raphael AM5
Architecture: Zen 4
# of CPU Cores: 16
Multithreading (SMT): Yes
# of Threads: 32
Max. Boost Clock : Up to 5.7 GHz
Base Clock : 4.2 GHz
L1 Cache: 1024 KB
L2 Cache: 16 MB
L3 Cache: 128 MB
Default TDP: 120W
Processor Technology for CPU Cores: TSMC 5nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
CPU Compute Die (CCD) Size: 71mm²
I/O Die (IOD) Size: 122mm²
Package Die Count: 3
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670 ,B650E, B650
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 89°C
Launch Date: 02/28/2023
*OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 3.2 Gen 1 (5Gbps) Ports: 0
Native USB 2.0 (480Mbps) Ports: 1
Native SATA Ports: 0
PCI Express® Version: PCIe® 5.0
Native PCIe® Lanes (Total/Usable): 28, 24
Additional Usable PCIe Lanes from Motherboard: X670E = 12x Gen4, X670 = 12x Gen4, B650E = 8x Gen4, B650 = 8x Gen4
NVMe Support: Boot, RAID0, RAID1, RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 128 GB
System Memory Subtype: UDIMM
Max Memory Speed: 2x1R = DDR5-5200, 2x2R = DDR5-5200, 4x1R = DDR5-3600, 4x2R = DDR5-3600
ECC Support: Yes (Requires mobo support)

Graphics Capabilities
Graphics Model: AMD Radeon™ Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode: Yes

Product IDs
Product ID Boxed: 100-100000908WOF
Product ID Tray: 100-000000908

Key Features
Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies
