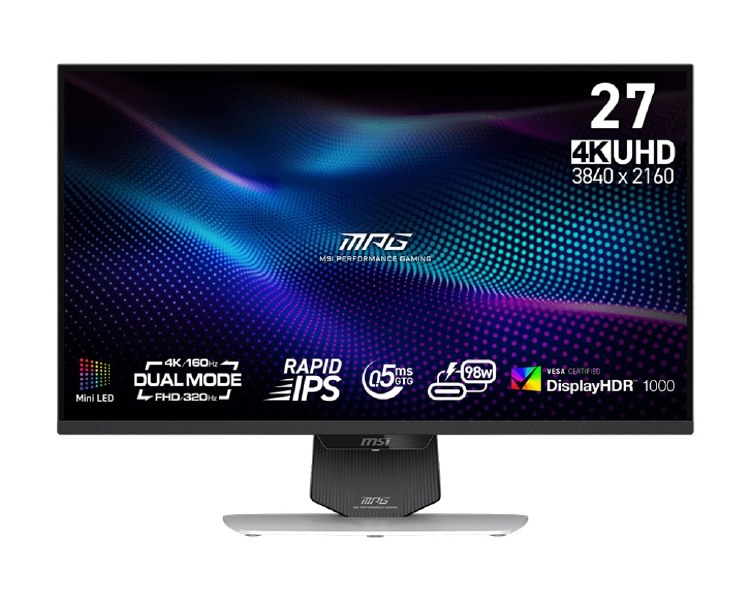

EX-DISPLAY: MSI MPG 274URDFW E16M - 27" Rapid IPS w/ Mini-LED, 3840 x 2160 UHD (Normal Mode)/1920 x 1080 FHD (Dual Mode), 160Hz (Normal Mode)/320Hz (Dual Mode), 0.5ms, Adaptive-Sync

MPG 274URDFW E16M

Panel Size: 27"
Active Display Area (mm): 596.16 (H) x 335.34 (V)
Curvature: Flat
Panel Type: Rapid IPS with Mini-LED (1152 Zones)
Panel Resolution: Normal: 3840 x 2160 (UHD) / Dual Mode: 1920 x 1080 (FHD)
Pixel Pitch (H x V): 0.15525 (H) x 0.15525 (V)
Aspect Ratio: 16:9
Brightness (nits): SDR: 400 cd/m², HDR: 1000 cd/m² (Peak)
Contrast Ratio: 1000:1 (Typ.)
DCR: 100000000:1
Signal Frequency: Normal: 180~356KHz, (H) 48~160Hz (V) / Dual Mode: 180~356KHz (H), 48~320Hz (V)
Activated Range: Normal: 48~160Hz / Dual Mode: 48~320Hz
Refresh Rate: Normal: 160Hz / Dual Mode: 320Hz
Response Time: 0.5ms (GtG, Min.)
Dynamic Refresh Rate Technology: Adaptive-Sync
HDR Support: VESA DisplayHDR 1000
Video Ports: 1x DisplayPort 1.4a (HBR3), 2x HDMI™ 2.1 (UHD@160Hz), 1x Type-C (DP alt.) w/ 98W Power Delivery
Audio Ports: 1x Headphone-out
Viewing Angle: 178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB: 100% / 98% / 140% (CIE1976 Standard)
Surface Treatment: Anti-glare
Display Colors: 1.07B, 10 bits (8 bits + FRC)
Console Mode:
- Supported Resolution & Refresh Rate:
- 1080p: 60Hz and 120Hz
- 1440p: 60Hz and 120Hz
- 2160p: 60Hz and 120Hz
- HDMI™ CEC: Supported
- VRR: PS5 and Xbox Supported
Frameless Design: Yes
PIP / PBP Function: Yes
Power Type: External Adaptor 24V 11A
Power Input: 100~240V, 50/60Hz
Adjustment (Tilt): -5° ~ 20°
Adjustment (Swivel): -30° ~ 30°
Adjustment (Pivot): -90° ~ 90°
Adjustment (Height): 0~110 mm
Kensington Lock: Yes
VESA Mounting: 100 x 100 mm
Dimension with Stand (W x D x H): 613.1 x 202.38 x 400.85 mm (24.14 x 7.97 x 15.78 inch)
Dimension without Stand (W x D x H): 613.1 x 68.77 x 375.31 mm (24.14 x 2.71 x 14.78 inch)
Weight (NW / GW): 8.2 kg (18.08 lbs) / 12.4 kg (27.34 lbs)
Carton Dimension (W X D X H): 905 x 195 x 470 mm (35.63 x 7.68 x 18.50 inch)
Accessories: 1x DP Cable (1.4a), 1x HDMI™ Cable (2.1), 1x USB Type-B to A Cable, 1x USB Type-C Cable, 1x Power Cord (C5), 1x AC Adaptor, 1x Quick Guide, 4x VESA Wall Mount Screw
Note:
- HDMI™: Normal (UHD): 3840 x 2160 (Up to 160Hz)
- Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)
- DisplayPort: Normal (UHD): 3840 x 2160 (Up to 160Hz)
- Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)
- Type-C: Normal (UHD): 3840 x 2160 (Up to 160Hz)
- Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)
- Support: HDMI™ CEC, PIP/PBP, KVM
