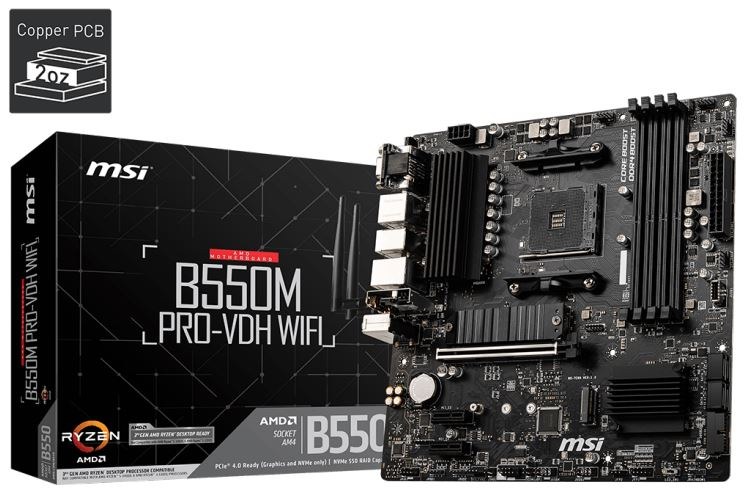

MSI B550M PRO-VDH WIFI AMD Ryzen Motherboard

MSI B550M PRO-VDH WIFI AMD Ryzen Motherboard -

Overview -
The MSI B550M Pro-VDH Wi-Fi motherboard supports 3rd gen AMD Ryzen AM4 processors, features up to 4 x DDR memory slots, PCI-E 4.0 and PCI-E 3.0 expansion slots, 2 x M.2 slots, 4 x SATA ports (6GB/s), 6 x rear USB ports (2 x USB 2.0, 4 x USB 3.2 Gen 1 Type-A), 7 x front panel header USB ports (4 x USB 2.0, 3 x USB 3.2 Gen 1, 1 x Type-C and 2 x Type-A), 1 x HDMI, 1 x DisplayPort, 1 x VGA, Realtek RTL8111HN Gigabit LAN, 3 HD audio connectors, and a micro-ATX motherboard form factor. The MSI B550M Pro-VDH Wi-Fi motherboard has a fantastic feature set for your new PC without a huge price tag.

Model Name B550M PRO-VDH WIFI -
CPU Support Support for 3rd Gen AMD® Ryzen™ processors and future AMD® Ryzen™ processors with BIOS update
CPU Socket AMD Socket AM4
Chipset AMD®
B550 Chipset
Graphics Interface 1x PCIe 4.0 / 3.0 x16 slot
Display Interface DisplayPort, HDMI, VGA – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4400 MHz (OC)
Expansion Slots 2x PCI-E 3.0 x1 slots,
Storage 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s
ports
USB ports 7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C) + 6x USB 2.0
LAN Realtek® RTL8111HN Gigabit LAN
Wi-Fi / Bluetooth Intel®
Wireless-AC 3168, Bluetooth 4.2
Audio 8-Channel (7.1) HD Audio with Audio Boost

Core Boost -

With premium layout and fully digital power design to support more cores and provide better performance.
DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability.
Lightning Gen4 solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
PCI-E Steel Armor Protecting VGA cards against bending and EMI
Mystic Light Extension Control additional RGB or Rainbow strip added to your system with Dragon Center.
2oz Thickened Copper PCB An enhanced PCB design improves heat dissipation and performance reliability.
Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience.
