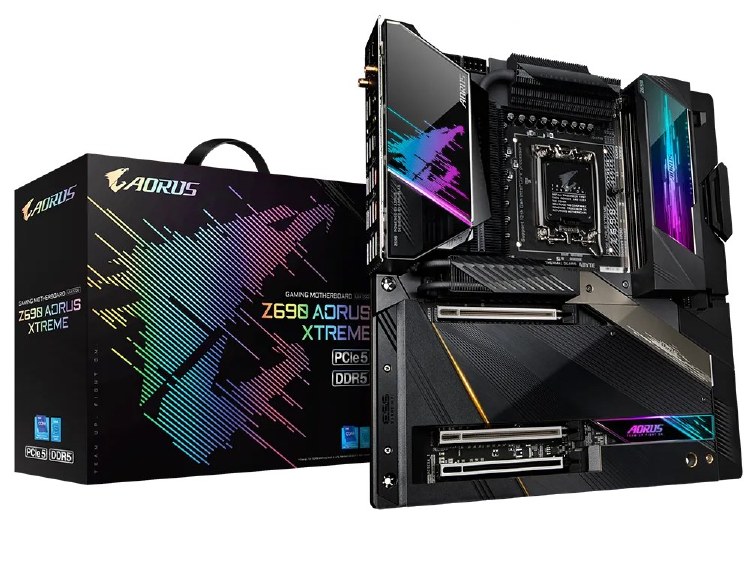

Gigabyte Z690 AORUS XTREME DDR5 Intel LGA 1700 E-ATX Motherboard

Gigabyte Z690 AORUS XTREME LGA 1700 Intel Z690 Express DDR5 Extended ATX Motherboard (Z690 AORUS XTREME)

Internal I/O
Number of M.2 (M) slots - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Front panel connector - Yes
12V power connector - Yes
Supported storage drive interfaces - M.2,PCI Express 4.0,SATA III
USB 2.0 connectors - 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Number of SATA III connectors - 4
Number of chassis fan connectors - 4
EPS power connector (8-pin) - Yes
CPU fan connector - Yes
ATX Power connector (24-pin) - Yes
RGB LED pin header - Yes
Technical details -
Motherboard chipset family - Intel
Motherboard chipset - Intel Z690 Express
Supported processor sockets - LGA 1700
PC health monitoring - Fan, Noise, Temperature, Voltage, Water cooling
Parallel processing technology support - 2-Way CrossFireX,Quad-GPU CrossFireX
Motherboard form factor - Extended ATX
Component for - PC
Audio -
Audio output channels - 2.0 channels
Performance -
Supported storage drive types - HDD & SSD
Windows operating systems supported Windows 10 x64,Windows 11 x64
Motherboard chipset family - Intel
Motherboard chipset - Intel Z690 Express
RAID levels - 0,1,5,10
Supported processor sockets - LGA 1700
PC health monitoring - Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels - 2.0 channels
Motherboard form factor - Extended ATX
Component for - PC
Processor -
Processor manufacturer - Intel
Compatible processor series - Intel Core i5, Intel Core i7, Intel Core i9
Supported processor sockets - LGA 1700
Processor socket - LGA 1700
Memory -
Number of memory slots - 4
Memory slots type - DIMM
Supported memory types - DDR5-SDRAM
Memory channels - Dual-channel
ECC - Yes
Non-ECC - Yes
Supported memory clock speeds - 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600 MHz
Maximum internal memory - 128 GB
Unbuffered memory - Yes
Storage controllers -
Supported storage drive types - HDD & SSD
Supported storage drive interfaces - M.2,PCI Express 4.0,SATA III
RAID levels - 0,1,5,10
Number of storage drives supported - 8
RAID support - Yes
Graphics -
Parallel processing technology support - 2-Way CrossFireX,Quad-GPU CrossFireX
Maximum resolution - 5120 x 2880 pixels
HDCP - Yes
Rear panel I/O ports -
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 10
DisplayPort version - 1.4
USB connector type USB - Type-A, USB Type-C
WiFi-AP antenna jack - 2
Thunderbolt ports quantity - 2
S/PDIF out port - Yes
Microphone in - Yes
Headphone outputs - 2
Ethernet LAN (RJ-45) ports - 2
Network -
Ethernet LAN - Yes
Wi-Fi - Yes
Wi-Fi standards - 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
LAN controller - Marvell AQtion AQC113C
Ethernet interface type - 10 Gigabit Ethernet
Bluetooth - Yes
Bluetooth version - 5.2
Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
WLAN controller model - Intel Wi-Fi 6E AX210
Features -
Windows operating systems supported - Windows 10 x64,Windows 11 x64
Motherboard chipset family - Intel
Motherboard chipset - Intel Z690 Express
Supported processor sockets - LGA 1700
PC health monitoring - Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels - 2.0 channels
Motherboard form factor - Extended ATX
Component for - PC
Expansion slots -
Number of M.2 (M) slots - 4
PCI Express x16 slots - 3
BIOS -
BIOS type - UEFI AMI
BIOS memory size - 256 Mbit
ACPI version - 5.0
Clear CMOS button - Yes
System Management BIOS (SMBIOS) version - 2.7
Desktop Management Interface (DMI) version - 2.7
Video -
Maximum resolution - 5120 x 2880 pixels
HDCP - Yes
Software -
Windows operating systems supported - Windows 10 x64,Windows 11 x64
Bundled software - Norton Internet Security, cFosSpeed
Weight & dimensions -
Width - 305 mm
Depth - 285 mm
Packaging content -
Cables included - SATA
Bundled software - Norton Internet Security, cFosSpeed
