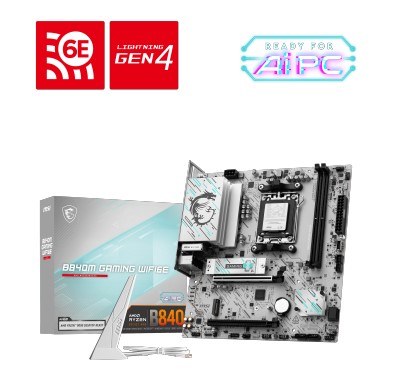

MSI B840M GAMING WIFI6E AM5 Motherboard

SPECIFICATIONS
Model Name B840M GAMING WIFI6E
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B840 Chipset
Expansion slot 1 x PCIe 4.0 x16 slot,
1 x PCIe 3.0 x4 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort
1.4 – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5 - 8000+ MT/s (OC)
Storage 2 x M.2 Gen4 x4 64Gbps slots,
4 x SATA 6Gbps ports
USB ports 7 x USB 5Gbps (6 Type-A + 1 Type-C)
6 x USB 2.0
LAN Realtek®
8125D 2.5G LAN
WIFI / BT Wi-Fi 6E module, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Dual M.2 Connectors
Onboard dual M.2 connectors for the maximum storage
performance with Lightning Gen 4 solution.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
