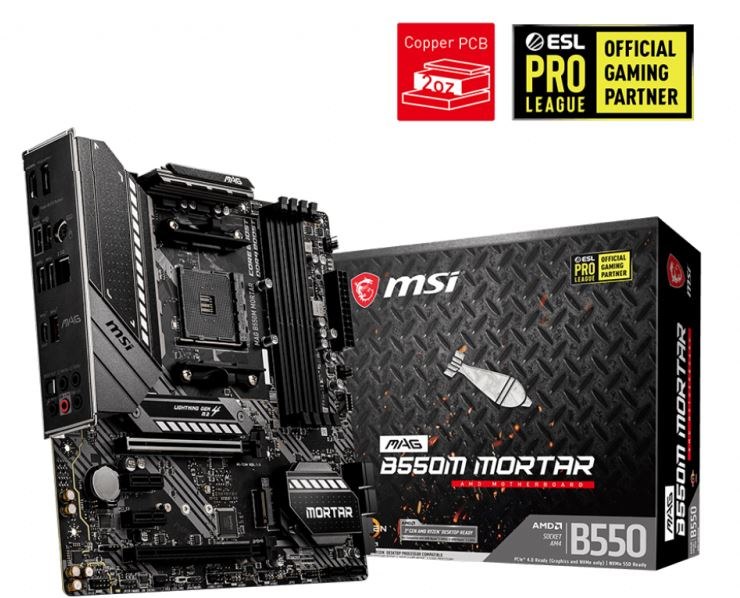

MSI MAG B550M MORTAR AMD Ryzen Motherboard

MSI MAG B550M MORTAR AMD Ryzen Motherboard

Overview -
The MSI MAG B550M Mortar motherboard supports 3rd gen AMD AM4 processors, features up to 4 x DDR4 memory slots, PCI-E 4.0, PCI-E 3.0, 2 x M.2 slots, 6 x SATA 6GB/s ports, 6 x USB 2.0 (4 front, 2 rear), 2 x USB 3.2 Gen 2 (2 rear, 1 x Type-A, 1 x Type-C), 5 x USB 3.2 Gen 1 (3 front, 2 x Type-A, 1 x Type-C, 2 rear), 1 x HDMI, 1 x DisplayPort, Realtek RTL8125B 2.5G LAN, Realtek ALC1200 HD audio codec, and a m-ATX form factor.

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

Model Name MAG B550M MORTAR-

CPU Support 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update CPU Socket AMD Socket AM4
Chipset AMD B550 Chipset - Graphics Interface 1x PCI-E 4.0 x16 slot
1x PCI-E 3.0 x16 slot - Support 2-way AMD CrossFire™ Technology
Display Interface DisplayPort, HDMI – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4400+(OC)Mhz
Expansion Slots 2x PCI-E 3.0 x1 slots
Storage 2x M.2 slots, 6x SATA 6Gb/s
SATA RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage
devices
USB Ports 2x USB 3.2 Gen 2 10Gbps (1 Type-C + 1 Type-A)
5x USB 3.2 Gen 1 5Gbps (1 Type-C + 4 Type-A)
6x USB 2.0
LAN Realtek® - RTL8125B 2.5G LAN
Audio 8-Channel(7.1) HD Audio with Audio Boost(ALC1200)

Extended Heatsink Design -

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield FROZR - M.2 thermal accessory. Keeps M.2 SSDs safe whilepreventing throttling, making them run faster.
Lightning Gen4 solution- The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2oz Thickened Copper PCB - An enhanced PCB design improves heat dissipation and performance reliability.
2.5G LAN - Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.
Core Boost- With premium layout and fully digital power design to support more cores and provide better performance.
DDR4 Boost - Advanced technology to deliver pure data signals for the best gaming performance and stability.
Audio Boost - Reward your ears with studio grade sound quality for the most immersive audio experience.
