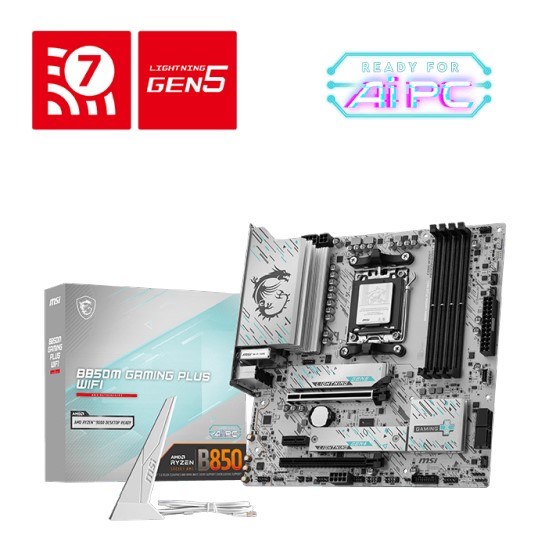

MSI MAG B850M GAMING PLUS WIFI AM5 Motherboard

SPECIFICATIONS
Model Name B850M GAMING PLUS WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B850 Chipset
Expansion slots 1 x PCIe 5.0 x16 slot,
1 x PCIe 4.0 x4 slot,
1 x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 8200+ MT/s (OC)
Storage 1 x M.2 Gen5 x4 128Gbps slot,
1 x M.2 Gen4 x4 64Gbps slot,
4 x SATA 6Gbps ports
USB ports 6 x USB 10Gbps (3 Type-A + 3 Type-C),
5 x USB 5Gbps (5 Type-A),
4 x USB 2.0
LAN Realtek®
8126 5Gbps LAN
WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

Wi-Fi 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap
forward with multiple improvements to meet the traffic demand
brought and the growing number of wireless devices.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution,
strengthened by M.2 Shield Frozr.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
