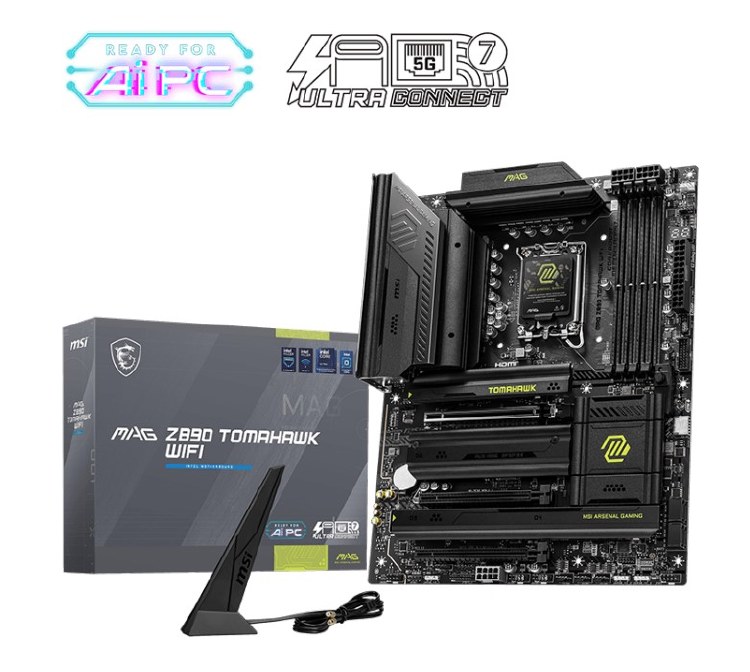

MSI MAG Z890 TOMAHAWK WIFI INTEL CORE ULTRA MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name MAG Z890 TOMAHAWK WIFI
CPU Support Supports Intel® Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
Z890 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot, 2x PCIe 4.0 x16 slots
Display Interface 2x ThunderboltTM 4 (Type-C),
Support 8K@60Hz as specified in HDM™ 2.1 FRL – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5
Storage 1x M.2 Gen5 x4 128Gbps slot,
3x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
Thunderbolt™ 4 2 x USB Type-C up to 40Gbps,
Charging support up to 5V/3A, 15W
USB ports 1x USB 20Gbps (1 Type-C)
4x USB 10Gbps (3 Type-A + 1 Type-C)
6x USB 5Gbps (6 Type-A)
4x USB 2.0
LAN Intel®
Killer™ E5000B 5G LAN
Wireless /
Bluetooth
Intel®
Killer™ Wi-Fi 7 BE1750x, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 4

FEATURES
Thunderbolt™ port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Audio Boost 4
Isolated audio with a high quality audio processor for the most
immersive gaming experience.
