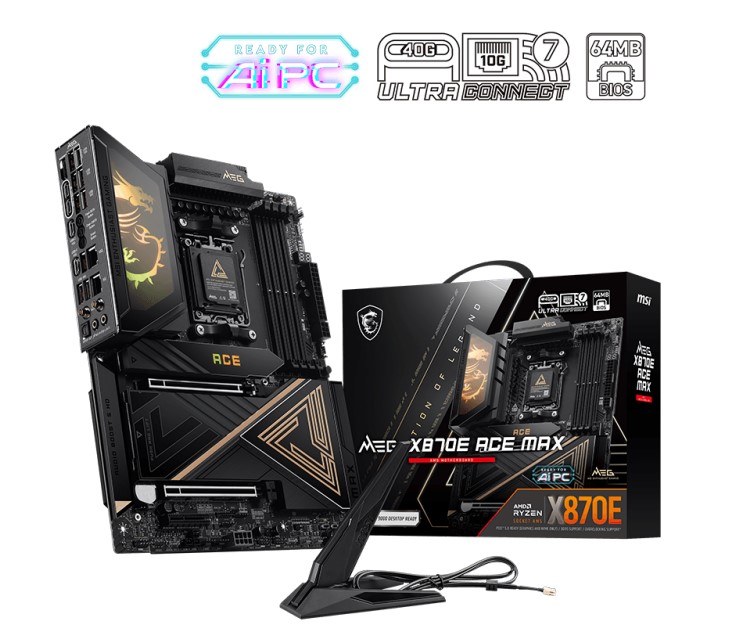

MSI MEG X870E ACE MAX AMD AM5 Series MOTHERBOARD

SPECIFICATIONS
Model Name MEG X870E ACE MAX
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Expansion slots 1x PCIe 5.0 x16 slot,
1x PCIe 5.0 x8 slot,
1x PCIe 5.0 x4 slot
Display Interface 2 x USB4 ports support USB Type-C display output,
Support 8K@60Hz as specified in HDMI™ 2.1 FRL,
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 8400+MT/s (OC)
Storage 2 x M.2 Gen5 x4 128Gbps slots,
3 x M.2 Gen4 x4 64Gbps slots,
4 x SATA 6Gbps ports
USB ports 2 x USB 40Gbps (2 Type-C),
1 x USB 20Gbps (1 Type-C),
11 x USB 10Gbps (9 Type-A + 2 Type-C),
4 x USB 5Gbps (4 Type-A),
4 x USB 2.0
LAN 1 x Marvell®
AQC 10Gbps LAN, 1 x Realtek®
5Gbps LAN
WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) USB High Performance Audio with Audio
Boost 5 HD

FEATURES
OC Engine
With the clock generator, the OC Engine technology releases the
maximum power of CPU.
64MB BIOS
A larger BIOS ROM capacity allows the motherboard to support
next-level CPU upgrades with better compatibility.
Ultra Power +
The ultimate power solution with 18+2+1 DRPS, 110A SPS, and
OC Engine unleashes maximum CPU performance.
Frozr Design
Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover,
Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI
software ensure the utmost performance with low temp.
10G Super LAN + 5G LAN
Onboard 10G plus 5G LAN provide the next level network speed,
secure networking with the fastest data throughput to deliver the
best online gaming experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps
transmission speed.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Quintuple M.2 Connectors
Onboard 5x M.2 connectors with dual Lightning Gen 5 solution for
the maximum storage performance.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
Audio Boost 5 HD
Ultimate audio solution with premium audio processor combining
ESS audio DAC and amplifier deliver the breathtaking experience.
