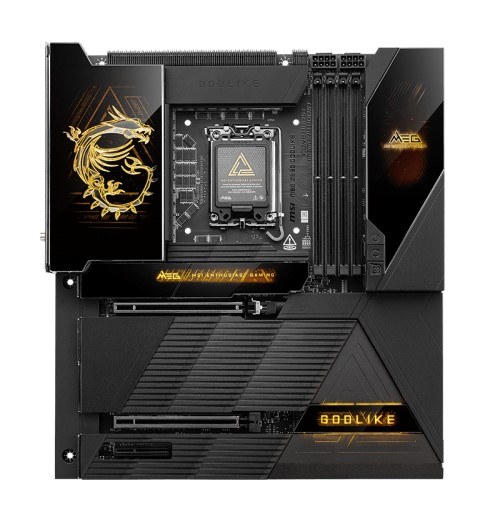

MSI MEG Z890 GODLIKE INTEL CORE ULTRA MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name MEG Z890 GODLIKE
CPU Support Support Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
Z890 Chipset
Expansion Slots 2x PCIe 5.0 x16 slots,
1x PCIe 4.0 x4 slot
Display Interface 2x Thunderbolt™ 4 (Type-C),
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 9200+ MT/s (OC)
Storage 1x M.2 Gen 5 x4 128Gbps slot,
2x M.2 Gen 5 x4 128Gbps slots via M.2 card,
5x M.2 Gen 4 x4 64Gbps slots,
*M.2_6 support Gen 5 x4 by manual BIOS adjustment
4x SATA 6Gbps ports
Thunderbolt™ 4 2x USB Type-C up to 40Gbps,
Charging support up to 5V/3A, 15W
USB ports 2x USB 20Gbps (2 Type-C),
13x USB 10Gbps (8 Type-A + 5 Type-C),
4x USB 5Gbps (4 Type-A),
4x USB 2.0
LAN 1x Marvell®
AQC113CS 10Gbps LAN,
1x Intel®
Killer™ 5Gbps LAN
WiFi / BT Intel®
Killer™ BE1750x Wi-Fi 7, Bluetooth 5.4
Audio 8-Channel (7.1) USB High Performance Audio with Audio
Boost 5 HD

FEATURES
Dynamic Dashboard III
A 3.99-inch LCD for real-time hardware monitoring,
troubleshooting, BIOS updates, and personalized display options,
enhancing the overall user experience.
EZ Link
By consolidating front panel, fan, and ARGB headers into the EZ
Bridge and EZ Control Hub, cable management is simplified,
resulting in an extremely clean build.
M.2 XPANDER-Z SLIDER GEN5
The one-slot-thick M.2 expansion card features dual high-speed
Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades
effortless.
THUNDERBOLTM5
The Thunderbolt 5 accessory card features dual Thunderbolt 5
ports, delivering up to 160Gbps of total bandwidth and up to 27W
of rapid power delivery for charging.
Ultra Power +
The ultimate power solution with 26+2+1+1 DRPS, 110A SPS,
and OC Engine unleashes maximum CPU performance.
Frozr Design
Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover,
Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI
software ensure the utmost performance with low temp.
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
10G Super LAN + 5G LAN
Onboard 10G plus 5G LAN provide the next level network speed,
secure networking with the fastest data throughput to deliver the
best online gaming experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
EZ Magnetic M.2 Shield Frozr II
The patented design enables true “wire-less” RGB function, while
the screwless design provides the easiest way for M.2 installation.
