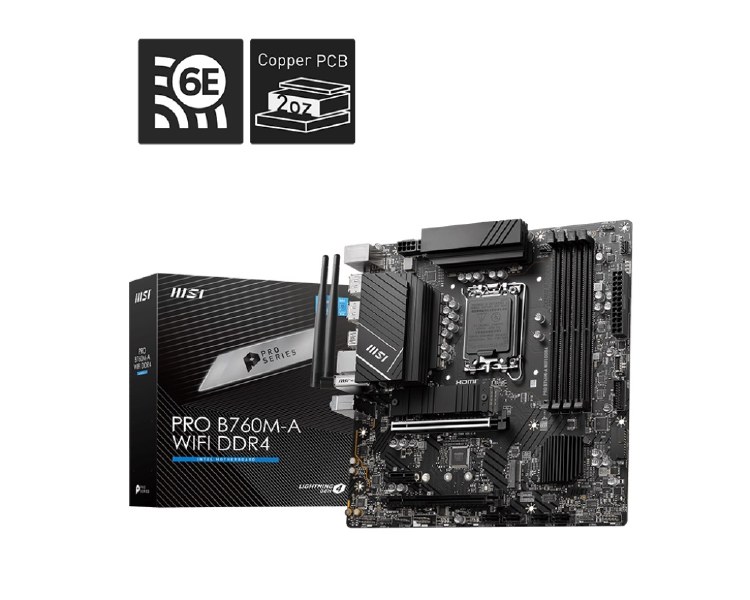

MSI PRO B760M-A WIFI DDR4 INTEL 13TH GEN MOTHERBOARD

SPECIFICATIONS
Model Name PRO B760M-A WIFI DDR4
CPU Support Supports 12th/ 13th Gen Intel®
Core™ Processors, Pentium®
Gold and Celeron®
Processors
CPU Socket LGA 1700
Chipset Intel®
B760 Chipset
Expansion Slots 2x PCIe 4.0 x16 slots
1x PCIe 3.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4 5333+MHz (OC)
Storage 2x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
USB ports 2x USB 3.2 Gen 2 10Gbps (2 Type-A),
7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C),
6x USB 2.0
LAN Realtek®
RTL8125BG 2.5G LAN
WiFi / BT Intel®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
