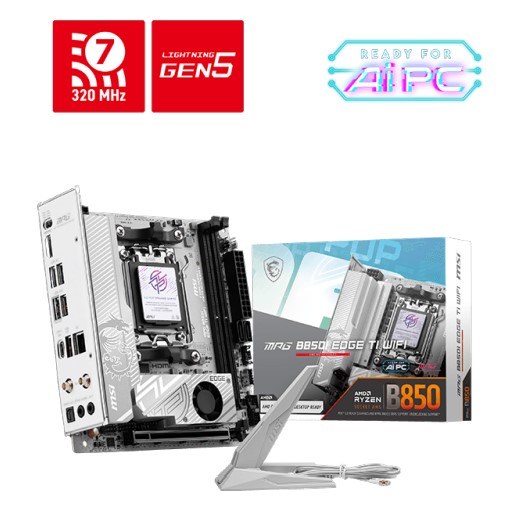

MSI MPG B850I EDGE TI WIFI AM5 Motherboard

SPECIFICATIONS
Model Name MPG B850I EDGE TI WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B850 Chipset
Expansion slots 1x PCIe 5.0 x16 slot
Display Interface Support 8K@60Hz as specified in HDMI™ 2.1 FRL
– Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5
Storage 1x M.2 Gen5 x4 128Gbps slot
1x M.2 Gen4 x4 64Gbps slot
2x SATA 6Gbps ports
USB ports 1x USB 20Gbps (1 Type-C)
4x USB 10Gbps (1 Type-C + 3 Type-A)
4x USB 5Gbps (4 Type-A)
2x USB 2.0 Type-A
LAN Realtek®
5Gbps LAN
Wireless /
Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 5

Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel,
achieving a maximum transmission speed of 2.9Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to
provide best performance for enthusiast gamers and prosumers.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution,
strengthened by M.2 Shield Frozr.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
