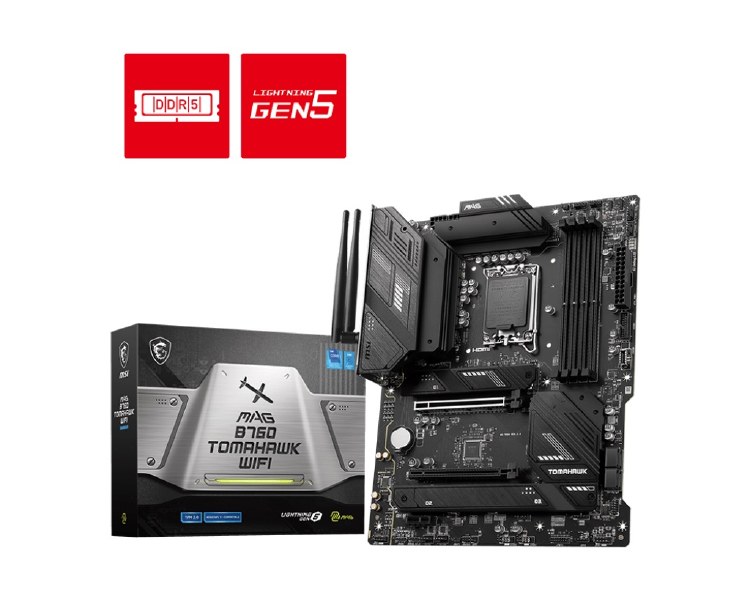

MSI MAG B760 TOMAHAWK WIFI INTEL 13TH GEN MOTHERBOARD

SPECIFICATIONS
Model Name MAG B760 TOMAHAWK WIFI
CPU Support Supports 12th/ 13th Gen Intel®
Core™ Processors, Pentium®
Gold and Celeron®
Processors
CPU Socket LGA 1700
Chipset Intel®
B760 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x16 slot, 1x PCIe 4.0 x1 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-7000+ MHz (OC)
Storage 3x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports
USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C),
5x USB 3.2 Gen 2 10Gbps (Type-A + Type-C),
2x USB 3.2 Gen 1 5Gbps (Type-A),
8x USB 2.0
LAN Realtek®
RTL8125BG 2.5Gbps LAN
Wireless /
Bluetooth
Intel®
Wi-Fi 6E, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
6 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
M.2 Shield FROZR
M.2 thermal accessory keeps M.2 SSDs safe while preventing
throttling, making them run faster.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
