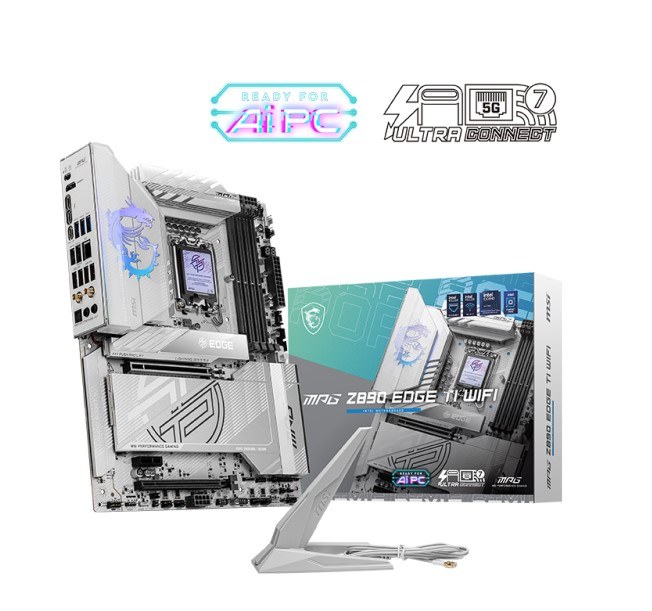

MSI MPG Z890 EDGE TI WIFI INTEL CORE ULTRA MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name MPG Z890 EDGE TI WIFI
CPU Support Supports Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
Z890 Chipset
Expansion Slot 1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
1x PCIe 4.0 x1 slot
Display Interface 2x Thunderbolt™ 4 (Type-C),
Support 8K@60Hz as specified in HDMI™ 2.1 FRL
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 9200+ MT/s (OC)
Storage 1x M.2 Gen5 x4 128Gbps slot
4x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports
Thunderbolt™ 4 2x USB Type-C up to 40Gbps,
Charging support up to 5V/3A, 15W
USB ports 1x USB 3.2 Gen 20Gbps (Type-C)
5x USB 3.2 Gen 10Gbps (4 Type-A + 1 Type-C)
6x USB 3.2 Gen 5Gbps (6 Type-A)
5x USB 2.0
LAN Intel®
Killer™ E5000B 5G LAN
WiFi / BT Intel®
Killer™ BE1750x Wi-Fi 7, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 4

FEATURES
Premium Thermal Design
Heavy plated heatsink with heat-pipe / high quality 7W/mK
MOSFET thermal pads / extra choke thermal pads / onboard M.2
Shield Frozr.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Quintuple M.2 Connectors
Onboard 5x M.2 connectors with one Lightning Gen 5 solution for
the maximum storage performance.
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Audio Boost 4
Isolated audio with a high quality audio processor for the most
immersive gaming experience.
