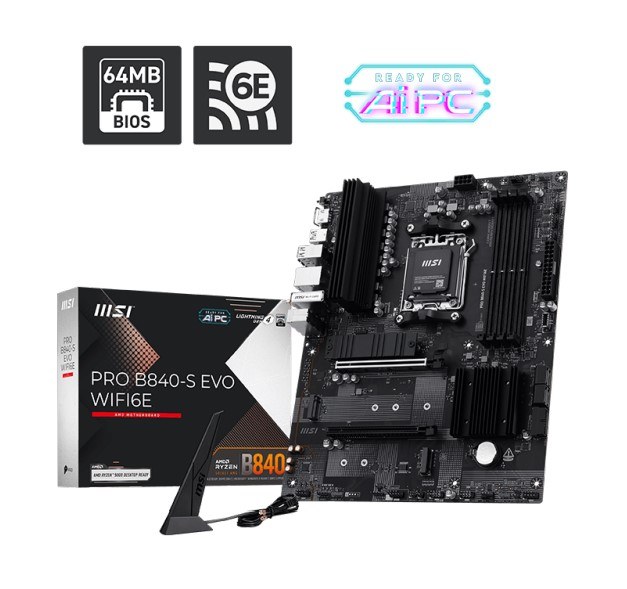

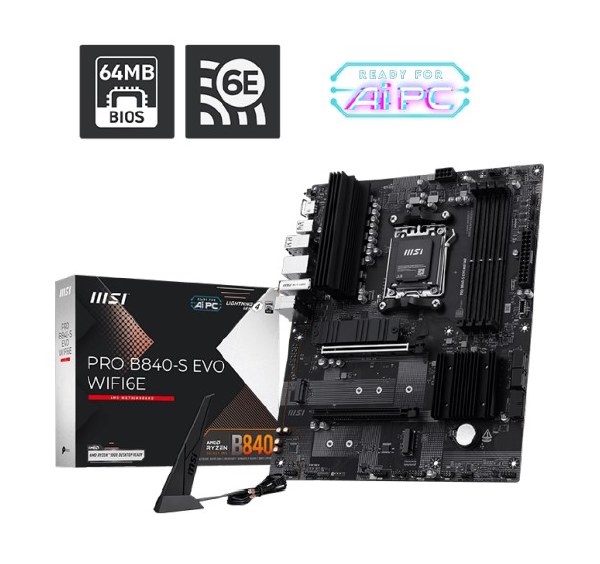

MSI PRO B840-S EVO WIFI6E AM5 Motherboard

SPECIFICATIONS
Model Name PRO B840-S EVO WIFI6E
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B840 Chipset
Expansion Slots 1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x4 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 8000+ MT/s (OC)
Storage 2 x M.2 Gen4 x4 64Gbps slots
1 x M.2 Gen3 x4 32Gbps slot
4 x SATA 6Gbps ports
USB ports 2 x USB 10Gbps (1 Type-A + 1 Type-C)
5 x USB 5Gbps (4 Type-A + 1 Type-C)
8 x USB 2.0
LAN Realtek®
8125 2.5G LAN
WiFi / BT Wi-Fi 6E Solution, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
64MB BIOS
A larger BIOS ROM capacity allows the motherboard to support
next-level CPU upgrades with better compatibility.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield Frozr
Built-in M.2 thermal solution keeps M.2 SSDs safe, prevents
throttling and maintains the performance.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
