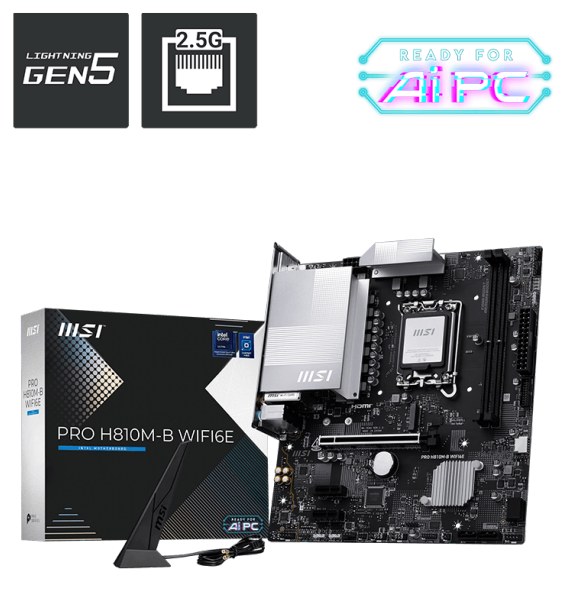

MSI PRO H810M-B WIFI6E MOTHERBOARD

SPECIFICATIONS
Model Name PRO H810M-B WIFI6E
CPU Support Support Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
H810 Chipset
Expansion Slots 1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x1 slots
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5 - 6400 MT/s (MAX)
Storage 1 x M.2 Gen4 x4 64Gbps slot,
4 x SATA 6Gbps ports
USB ports 1 x USB 10Gbps (1 Type-C),
4 x USB 5Gbps (4 Type-A),
8 x USB 2.0
LAN Realtek®
8125 2.5G LAN
WIFI / BT Wi-Fi 6E Solution, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
FEATURES
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
EZ Debug LED
Easiest way to troubleshoot.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
