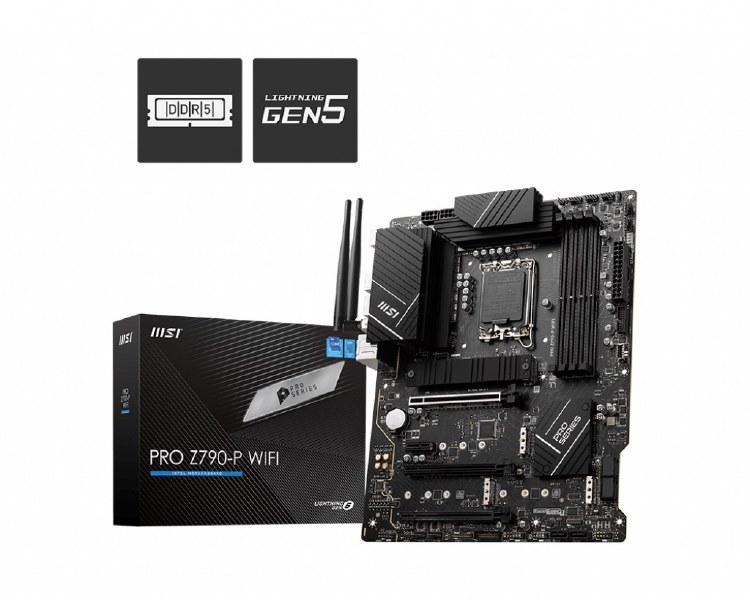

MSI PRO Z790-P WIFI INTEL 13TH GEN MOTHERBOARD

SPECIFICATIONS
Model Name PRO Z790-P WIFI
CPU Support Supports 12th/ 13th Gen Intel®
Core™ Processors, Pentium®
Gold and Celeron®
Processors
CPU Socket LGA 1700
Chipset Intel®
Z790 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots
Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 7000+MHz (OC)
Storage 4x M.2 Gen4 x4 64Gbps slots,
6x SATA 6Gbps ports
USB ports 1x USB 3.2 Gen 2x2 20G (1 Type-C),
2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C),
6x USB 3.2 Gen 1 5Gbps (6 Type-A),
8x USB 2.0
LAN Intel®
2.5G LAN
WiFi / BT Intel®
Wi-Fi 6E, Bluetooth 5.2
Audio 8-Channel (7.1) HD Audio with Audio Boost

Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
