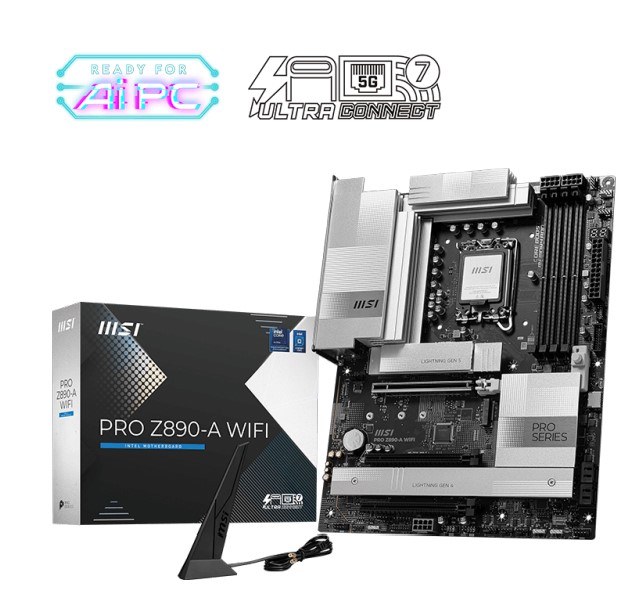

MSI PRO Z890-A WIFI INTEL CORE ULTRA MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name PRO Z890-A WIFI
CPU Support Support Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
Z890 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot
2x PCIe 4.0 x16 slots
Display Interface 2x ThunderboltTM 4 (Type-C),
Support 8K@60Hz as specified in HDMI™ 2.1 FRL
- Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 9200+ MT/s (OC)
Storage 1x M.2 Gen5 x4 128Gbps slot,
3x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
Thunderbolt™ 4 2 x USB Type-C up to 40Gbps,
Charging support up to 5V/3A, 15W
USB ports 1x USB 20Gbps (1 Type-C),
4x USB 10Gbps (3 Type-A + 1 Type-C),
6x USB 5Gbps (6 Type-A),
4x USB 2.0
LAN Realtek®
8126 5G LAN
WiFi / BT Intel®
Wi-Fi 7, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 4

FEATURES
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
