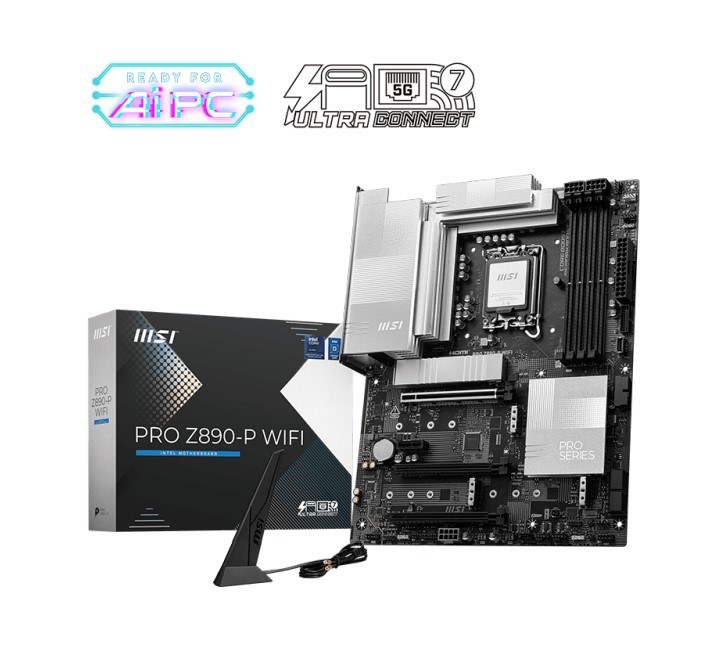

MSI PRO Z890-P WIFI INTEL CORE ULTRA MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name PRO Z890-P WIFI
CPU Support Support Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
Z890 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot
2x PCIe 4.0 x16 slots
1x PCIe 4.0 x1 slot
Display Interface 1 x Thunderbolt™ 4 (Type-C),
Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 9200+ MT/s (OC)
Storage 1x M.2 Gen5 x4 128Gbps slot,
3x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
Thunderbolt™ 4 1 x USB Type-C up to 40Gbps,
Charging support up to 5V/3A , 15W
USB ports 1x USB 20Gbps (1 Type-C),
2x USB 10Gbps (1 Type-A + 1 Type-C),
6x USB 5Gbps (6 Type-A)
8x USB 2.0
LAN Realtek®
8126 5G LAN
WiFi / BT Intel®
Wi-Fi 7, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Thunderbolt™ port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
