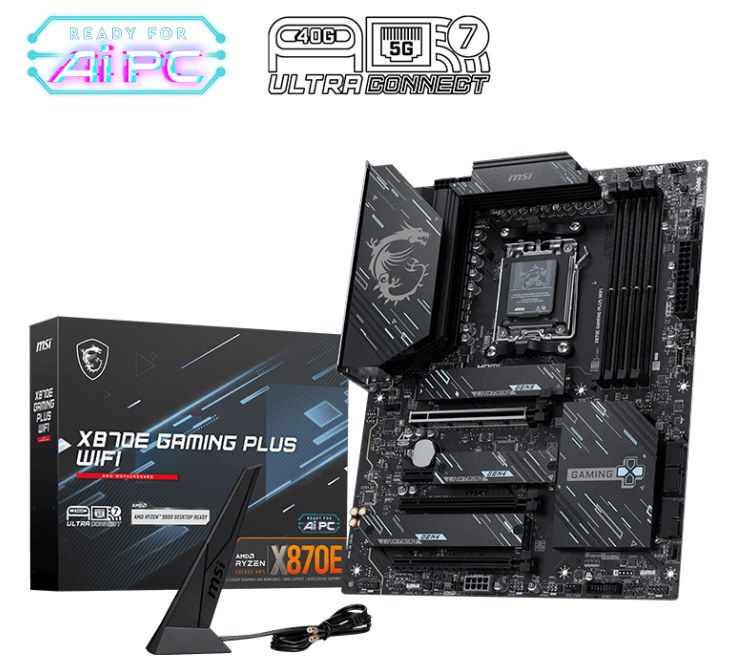

MSI X870E GAMING PLUS WIFI AMD AM5 Series MOTHERBOARD

SPECIFICATIONS
Model Name X870E GAMING PLUS WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Graphics Interface 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1 slots
Display Interface 1 x USB4 port supports USB Type-C display output,
Support 4K@60Hz as specified in HDMI™ 2.1 – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-8200+ MT/s (OC)
Storage 1 x M.2 Gen5 x4 128Gbps slot,
2 x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
USB ports 1 x USB 40Gbps (1 Type-C),
1 x USB 20Gbps (1 Type-C),
3 x USB 10Gbps (2 Type-A + 1 Type-C),
6 x USB 5Gbps (6 Type-A),
10 x USB 2.0
LAN Realtek® 5G LAN
Wireless / Bluetooth Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps
transmission speed.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Triple M.2 Connectors
Onboard 3x M.2 connectors with one PCIe 5.0 solution,
strengthened by M.2 Shield Frozr.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
