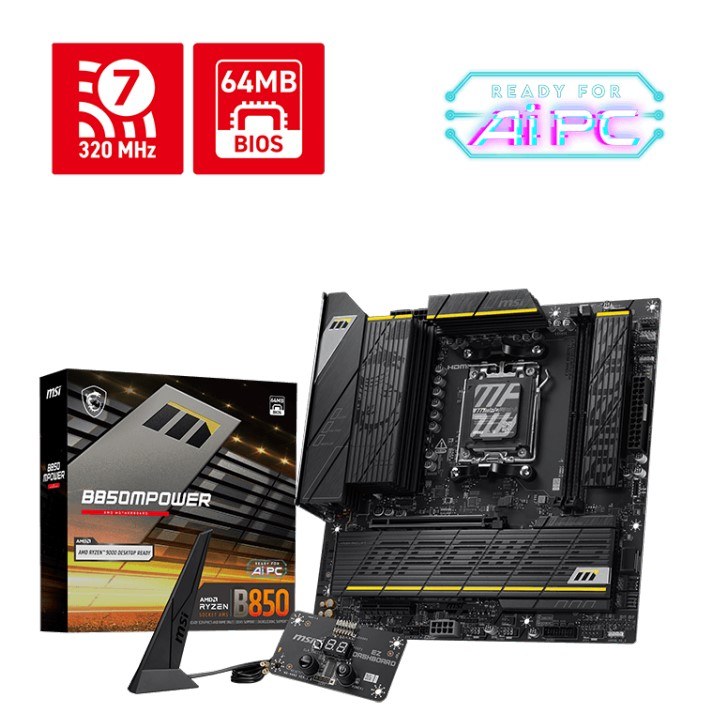

MSI B850MPOWER AM5 Motherboard

SPECIFICATIONS
Model Name B850MPOWER
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B850 Chipset
Expansion Slots 1 x PCIe 5.0 x16 slot,
1 x PCIe 4.0 x4 slot
Display Interface Support 8K@60Hz as specified in HDMI™ 2.1 FRL
– Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5 - 8400+MT/s (OC)
Storage 2 x M.2 Gen5 x4 128Gbps slots
1 x M.2 Gen4 x4 64Gbps slot
1 x M.2 Gen4 x2 32Gbps slot
2 x SATA 6Gbps ports
USB ports 1 x USB 20Gbps (1 Type-C)
5 x USB 10Gbps (3 Type-A + 2 Type-C)
6 x USB 5Gbps (6 Type-A)
4 x USB 2.0
LAN Realtek®
5Gbps LAN
WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) USB High Performance Audio with Audio
Boost 5

FEATURES
Extreme DDR5 Memory OC
The top-notch R&D design and exclusive 2 DIMM solution for an
even clearer DDR5 memory signal to deliver the world class
memory performance.
EZ Dashboard
Consolidate power, reset, clear CMOS buttons, and debug LED
into one accessory card, streamlining the reboot and testing
process for overclocking.
OC Engine
With the clock generator, the OC Engine technology releases the
maximum power of CPU.
64MB BIOS
A larger BIOS ROM capacity allows the motherboard to support
next-level CPU upgrades with better compatibility.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience.
