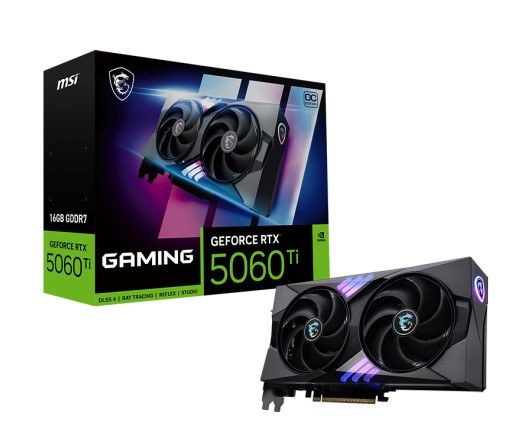

MSI GeForce RTX 5060 Ti 16G GAMING OC

SPECIFICATIONS
Marketing Name GeForce RTX™ 5060 Ti 16G GAMING OC
Model Name G506T-16GC
Graphics Processing Unit NVIDIA®
GeForce RTX™ 5060 Ti
Interface PCI Express®
Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2662 MHz (MSI
Center)
Boost: 2647 MHz
CUDA®
CORES 4608 Units
Memory Speed 28 Gbps
Memory 16GB GDDR7
Memory Bus 128-bit
Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 180 W
Power connectors 16-pin x 1 (ATX 3.1 PSU recommended)
Recommended PSU 600 W
Card Dimension (mm) 247 x 135 x 51 mm
Weight (Card / Package) 781 g / 1181 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES
Twin Frozr 10
Experience superior cooling and quieter performance with MSI's
enhanced fan blade design.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.
Metal Backplate
A reinforcing metal backplate with airflow vents and thermal pads
enhances cooling.
Wave Curved 4.0
Precision-engineered wave edges with a high-low fin design
enhance airflow and reduce turbulence.
Air Antegrade Fin 2.0
The fins feature a V-shaped cutout and a high-low design at the
airflow passthrough to optimize flow efficiency.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
