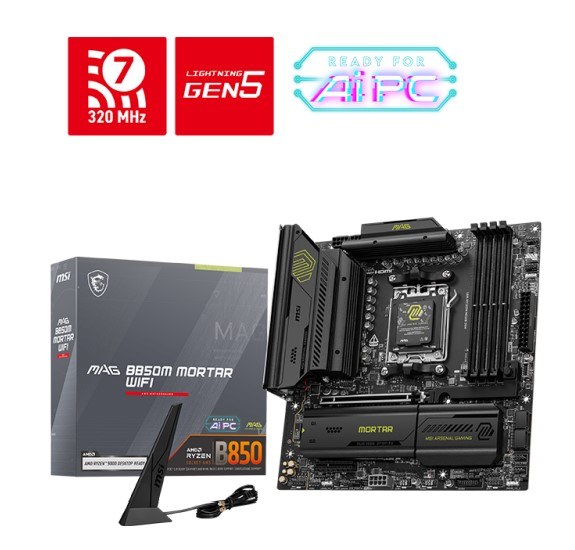

MSI MAG B850M MORTAR WIFI AM5 Motherboard

SPECIFICATIONS
Model Name MAG B850M MORTAR WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
Chipset Socket AMD Socket AM5
Chipset AMD B850 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4 slot
Display Interface Support 8K@60Hz as specified in HDMI™ 2.1 FRL – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5
Storage 2x M.2 Gen5 x4 128Gbps slots
1x M.2 Gen4 x2 32Gbps slot
4x SATA 6Gbps ports
USB ports 1x USB 20Gbps (1 Type-C)
5x USB 10Gbps (2 Type-C + 3 Type-A)
6x USB 5Gbps (6 Type-A)
4x USB 2.0
LAN Realtek®
5G LAN
Wireless /
Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 5

FEATURES
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel,
achieving a maximum transmission speed of 2.9Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Triple M.2 Connectors
Triple M.2 Connectors – Onboard 3x M.2 connectors with two PCIe
5.0 solution, strengthened by M.2 Shield Frozr.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
