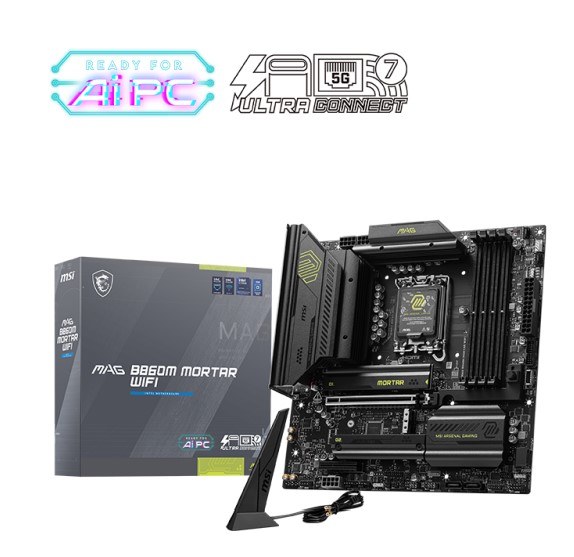

MSI MAG B860M MORTAR WIFI INTEL CORE ULTRA MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name MAG B860M MORTAR WIFI
CPU Support Supports Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
B860 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4 slot
Display Interface 1 x Thunderbolt™4 (Type-C), 1 x HDMI™ 2.1 FRL, 1 x
DisplayPort 1.4 HBR2 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 9200+ MT/s (OC)
Storage 1x M.2 Gen5 x4 128Gbps slot,
2x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
USB ports 1 x USB Type-C up to 40Gbps, Charging support up to 5V/3A
, 15W
5 x USB 10Gbps (3 Type-A + 2 Type-C)
2 x USB 5Gbps (2 Type-A)
8x USB 2.0
LAN Intel®
Killer™ E5000B 5G LAN
Wireless /
Bluetooth
Intel®
Killer™ Wi-Fi 7 BE1750x, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Thunderbolt™ 4 port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Triple M.2 Connectors
Onboard 3x M.2 connectors with one PCIe 5.0 solution,
strengthened by M.2 Shield Frozr.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
