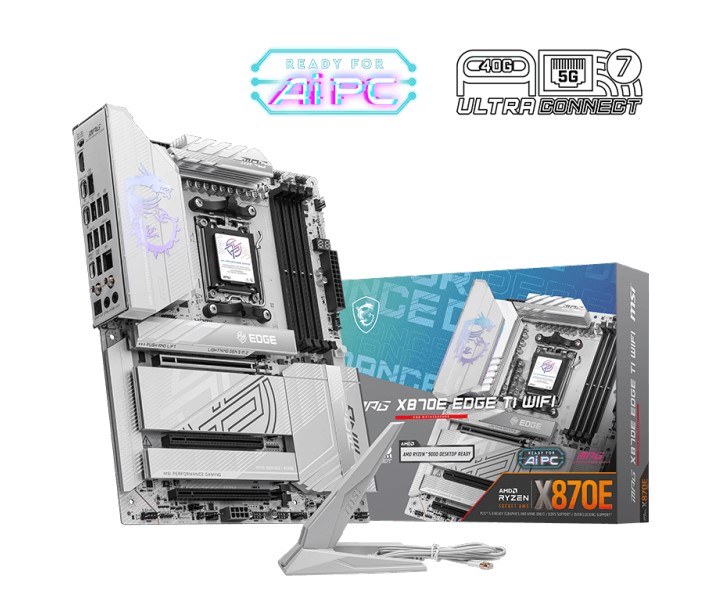

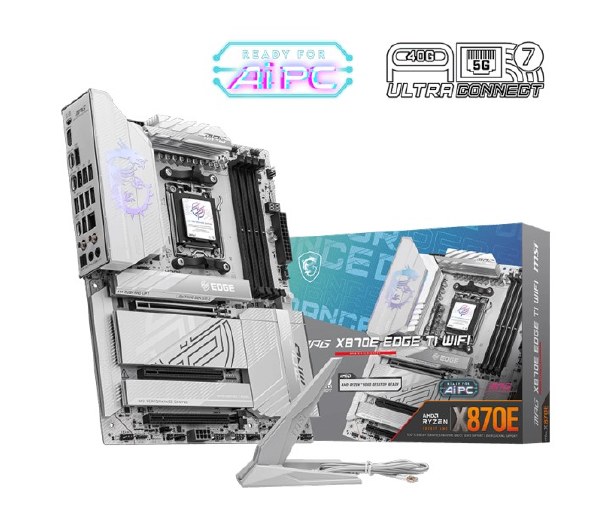

MSI MAG X870E EDGE TI WIFI AMD AM5 Series MOTHERBOARD

SPECIFICATIONS
Model Name MPG X870E EDGE WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Expansion slots 1x PCIe 5.0 x16 slot,
1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 8K@60Hz as specified in HDMI™ 2.1 FRL
2x USB4 ports support USB Type-C display outputs
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 8400+MT/s (OC)
Storage 2x M.2 Gen5 x4 128Gbps slot
2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports
USB ports 2x USB 40Gbps (2 Type-C),
1x USB 20Gbps (1 Type-C),
6x USB 10Gbps (1 Type-C + 5 Type-A),
4x USB 5Gbps (4 Type-A),
8x USB 2.0 Type-A
LAN Realtek®
5Gbps LAN
Wireless /
Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 5

FEATURES
Premium Thermal Design
Heavy plated MOSFET heatsink with heat-pipe / high quality
7W/mK MOSFET thermal pads / extra choke thermal pads /
onboard M.2 Shield Frozr
Wi-Fi 7
The latest wireless solution with a new 160MHz channel,
achieving a maximum transmission speed of 2.9Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance.
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps
transmission speed.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
