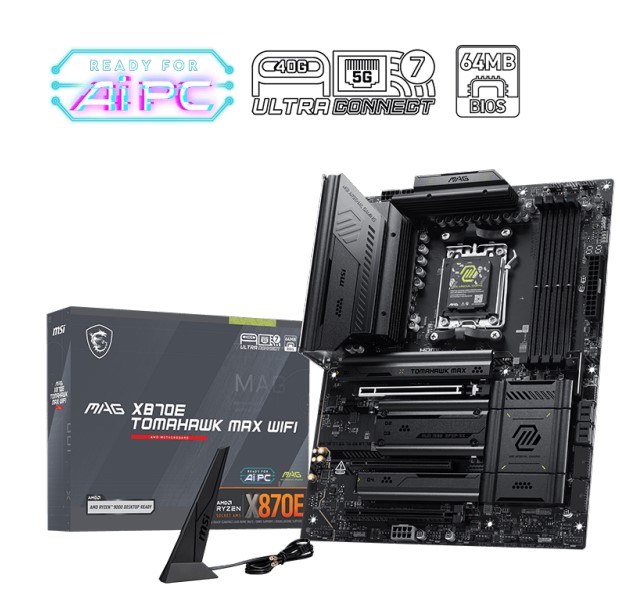

MSI MAG X870E TOMAHAWK MAX WIFI AMD AM5 Series MOTHERBOARD

SPECIFICATIONS
Model Name MAG X870E TOMAHAWK MAX WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Expansion Slot 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 8K@60Hz as specified in HDMI™ 2.1 FRL – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-8400+ MT/s (OC)
Storage 2 x M.2 Gen5 x4 128Gbps slots
2 x M.2 Gen4 x4 64Gbps slots
4 x SATA 6Gbps ports
USB ports 2 x USB 40Gbps (2 Type-C)
1 x USB 20Gbps (1 Type-C)
3 x USB 10Gbps (2 Type-A + 1 Type-C)
7 x USB 5Gbps (7 Type-A)
8 x USB 2.0
LAN Realtek®
5G LAN
Wireless /
Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 5

FEATURES
64MB BIOS
A larger BIOS ROM capacity allows the motherboard to support
next-level CPU upgrades with better compatibility.
OC Engine
With the clock generator, the OC Engine technology releases the
maximum power of CPU.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Quadruple M.2 Connectors
Onboard 4x M.2 connectors with two Lightning Gen 5 solution for
the maximum storage performance.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
