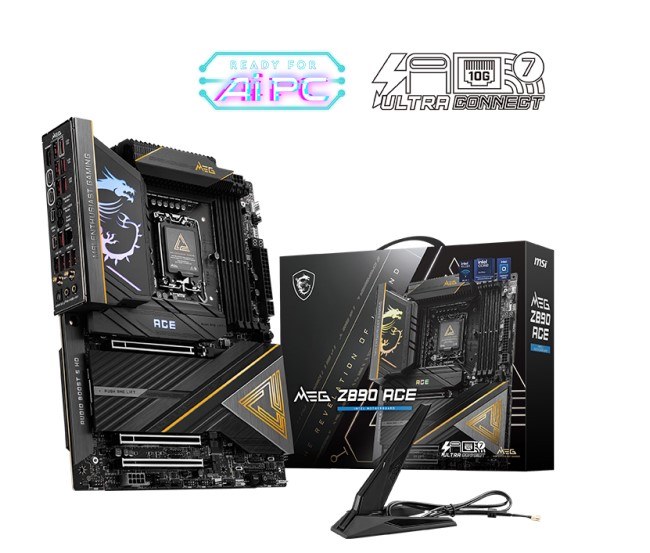

MSI MEG Z890 ACE INTEL CORE ULTRA MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name MEG Z890 ACE
CPU Support Support Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
Z890 Chipset
Expansion Slots 2x PCIe 5.0 x16 slots
1x PCIe 4.0 x4 slot
Display Interface 2x Thunderbolt™ 4 (Type-C),
Support 8K@60Hz as specified in HDMI™ 2.1 FRL,
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 9200+ MT/s (OC)
Storage 1x M.2 Gen 5 x4 128Gbps slot,
4x M.2 Gen 4 x4 64Gbps slots,
*M.2_4 support Gen 5 x4 by manual BIOS adjustment
4x SATA 6Gbps ports
Thunderbolt™ 4 2x USB Type-C up to 40Gbps,
Charging support up to 5V/3A, 15W
USB ports 1x USB 20Gbps (1 Type-C),
13x USB 10Gbps (11 Type-A + 2 Type-C),
4x USB 5Gbps (4 Type-A),
4x USB 2.0
LAN Marvell®
AQC113CS 10G LAN
WiFi / BT Intel®
Killer™ BE1750x Wi-Fi 7, Bluetooth 5.4
Audio 8-Channel (7.1) USB High Performance Audio with Audio
Boost 5 HD

FEATURES
Ultra Power +
The ultimate power solution with 24+2+1+1 DRPS, 110A SPS,
and OC Engine unleashes maximum CPU performance.
Frozr Design
Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover,
Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI
software ensure the utmost performance with low temp.
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
10G Super LAN
Next level network speed, secure networking with fastest data
throughput to improve efficiency.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Quintuple M.2 Connectors
Onboard 5x M.2 connectors with one Lightning Gen 5 solution for
the maximum storage performance.
EZ Magnetic M.2 Shield Frozr II
The patented design enables true “wire-less” RGB function, while
the screwless design provides the easiest way for M.2 installation.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Audio Boost 5 HD
Ultimate audio solution with premium audio processor combining
ESS audio DAC and amplifier deliver the breathtaking experience.
