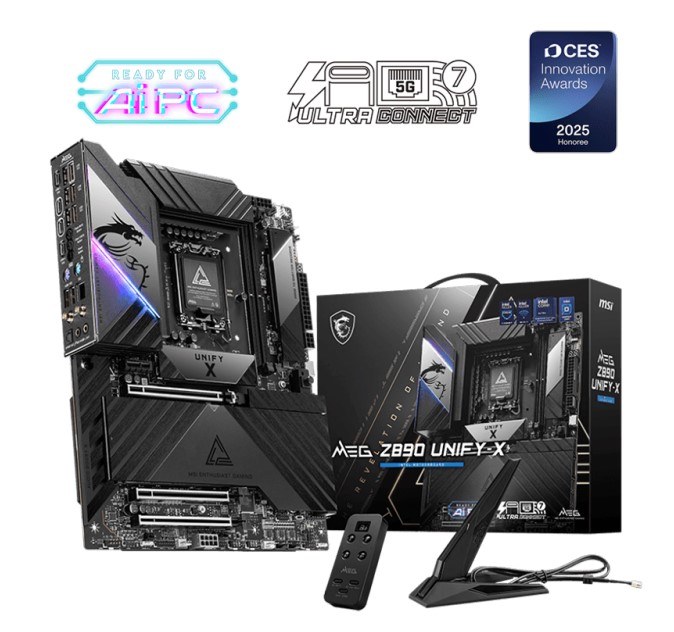

MSI MEG Z890 UNIFY X INTEL CORE ULTRA ATX MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name MEG Z890 UNIFY-X
CPU Support Support Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
Z890 Chipset
Expansion Slots 2x PCIe 5.0 x16 slots,
1x PCIe 4.0 x16 slot,
1x PCIe 4.0 x1 slot
Display Interface 2x Thunderbolt™ 4 (Type-C),
– Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5 9600+ MT/s (OC)
Storage 1x M.2 Gen 5 x4 128Gbps slot,
5x M.2 Gen 4 x4 64Gbps slots,
*M.2_4 support Gen 5 x4 by manual BIOS adjustment
6x SATA 6Gbps ports
Thunderbolt™ 4 2x USB Type-C up to 40Gbps,
Charging support up to 5V/3A, 15W
USB ports 1x USB 20Gbps (1 Type-C),
10x USB 10Gbps (8 Type-A + 2 Type-C),
4x USB 5Gbps (4 Type-A),
4x USB 2.0
LAN Intel®
Killer™ E5000B 5Gbps LAN
WiFi / BT Intel®
Killer™ BE1750x Wi-Fi 7, Bluetooth 5.4
Audio 8-Channel (7.1) USB High Performance Audio with Audio
Boost 5

FEATURES
Extreme DDR5 Memory OC
The top-notch R&D design and exclusive 2 DIMM solution for an
even clearer DDR5 memory signal to deliver the world class
memory performance.
Ultra Power +
The ultimate power solution with Direct 20+2+1+1 phases, 110A
SPS, and OC Engine unleashes maximum CPU performance.
Frozr Design
Direct Touch Cross Heat-pipe, Aluminum Cover, Double-sided M.2
Shield Frozr, Metal Backplate and Frozr AI software ensure the
utmost performance with low temp.
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Onboard 6x M.2 Connectors
Sextuple M.2 connectors with Lightning Gen 5 solution. Doublesided M.2 Shield Frozr keeps M.2 SSDs safe while preventing
throttling, making them run faster.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe
slot, simplifying the installation and removal of the graphics card.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience.
