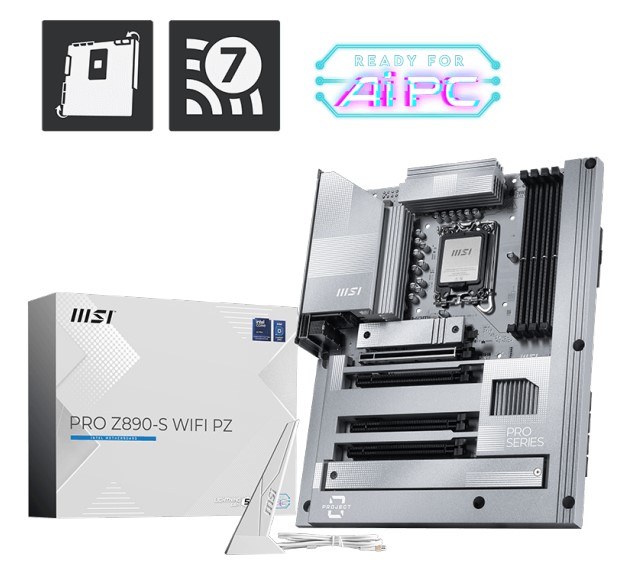

MSI PRO Z890-S WIFI PZ INTEL CORE ULTRA ATX MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name PRO Z890-S WIFI PZ
CPU Support Support Intel®
Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel®
Z890 Chipset
Expansion Slots 1 x PCIe 5.0 x16 slot
2 x PCIe 4.0 x16 slots
1 x PCIe 3.0 x1 slot
Display Interface 1 x Thunderbolt™ 4 (Type-C),
Support 4K@60Hz as specified in HDMI™ 2.1,
DisplayPort 1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 8800+ MT/s
Storage 1 x M.2 Gen5 x4 128Gbps slot,
2 x M.2 Gen4 x4 64Gbps slots,
4 x SATA 6Gbps ports
Thunderbolt™ 4 1 x USB Type-C up to 40Gbps,
Charging support up to 5V/3A , 15W
USB ports 2 x USB 20Gbps (2 Type-C),
8 x USB 5Gbps (8 Type-A),
4 x USB 2.0
LAN Realtek®
RTL8125D 2.5G LAN
WiFi / BT Intel®
Wi-Fi 7, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Back-Connect Design
Move the connectors to the back to provide a cleaner and neater
front view and significantly reduces the difficulty of cable
management.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Thunderbolt™ 4 port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network
experience.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
