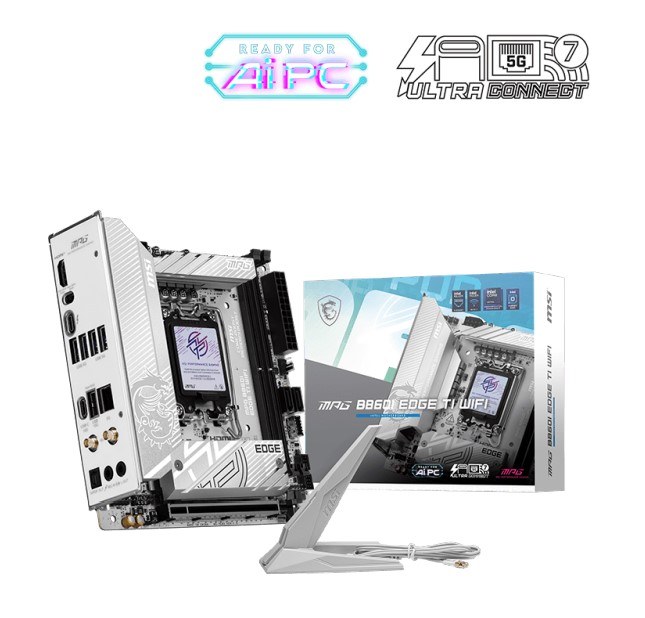

MSI MPG B860I EDGE TI WIFI INTEL CORE ULTRA MOTHERBOARD LGA 1851

SPECIFICATIONS
Model Name MPG B860I EDGE TI WIFI
CPU Support Supports Intel®
Core™ Ultra Processors
CPU Socket LGA 1851
Chipset Intel®
B860 Chipset
Expansion Slot 1x PCIe 5.0 x16 slot
Display Interface Support 8K@60Hz as specified in HDMI 2.1 FRL,
Thunderbolt™ 4 (Type-C) – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR5
Storage 1x M.2 Gen5 x4 128Gbps slot, 1x M.2 Gen4 x4 64Gbps slot,
2x SATA 6Gbps ports
Thunderbolt™ 4 1x USB Type-C up to 40Gbps, Charging support up to 5V/3A,
15W
USB ports 3x USB 3.2 Gen 10Gbps (1 Type-A + 2 Type-C),
6x USB 3.2 Gen 5Gbps (6 Type-A),
2x USB 2.0
LAN Intel®
Killer™ E5000B 5G LAN
Wi-Fi / BT Intel®
Killer BE1750x Wi-Fi 7, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Premium Thermal Design
Heavy plated MOSFET heatsink with heat-pipe / high quality
7W/mK MOSFET thermal pads / extra choke thermal pads /
onboard M.2 Shield Frozr
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution,
strengthened by M.2 Shield Frozr.
Thunderbolt™ 4 port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chain, Multi-Port Accessory
Architecture and USB 4.0 compliant.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel,
achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
