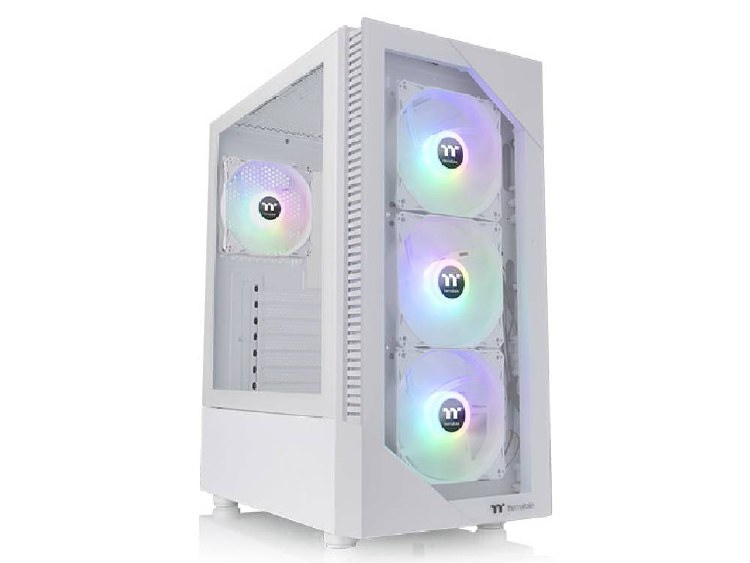

Thermaltake View 200 PLUS ARGB TG Mid Tower Case Snow Edition White

P/N
CA-1X3-00M1WN-01
Series
View
Case Type
Mid Tower
Dimensions
460x 210 x 395.3 mm
(18.11 x 8.27 x 15.56 inch)
Weight
5.1 kg / 11.2 lbs.
Side Panel
3mm Tempered Glass x 1
Color
Black
Material
SPCC
Cooling System
Front(intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 4
Drive Bays
2 x 3.5”, 2 x 2.5” or 1 x 3.5”, 3 x 2.5”
Expansion Slots
7
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX),
12" x 9.6" (ATX)
I/O Port
USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
Fan Support
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm_x000B_
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
_x000B_Rear:
1 x 120mm
Radiator Support
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 240mm, 1 x 120mm
Rear:
1 x 120mm
Clearance
CPU cooler max height:
166mm_x000B_
VGA max length:
300mm (with radiator)_x000B_
330mm (without radiator)_x000B_
PSU max length:
190mm (with HDD Cage)
